Options#
Toplight#
The Toplight is a lighting system that illuminates the surface of the part directly from above, enhancing surface textures and details. It is the ideal choice when the application requires the identification of visible features on the upper face of the part.
The available Toplights are:
TopLight 500x300 - White
This Toplight size is suitable for models: FlexiBowl® 200, FlexiBowl® 350, FlexiBowl® 500
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
500 |
300 |
45 |
55 |
65 |
0.15 m^2 |
1.6 m |
Code |
CM002316 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
96.6W |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
|
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 500x300 - Red
This Toplight size is suitable for models: FlexiBowl® 200, FlexiBowl® 350, FlexiBowl® 500
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
500 |
300 |
45 |
55 |
65 |
0.15 m^2 |
1.6 m |
Code |
CM002401 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
96.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
630 nm |
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 500x300 - Infrared
This Toplight size is suitable for models: FlexiBowl® 200, FlexiBowl® 350, FlexiBowl® 500
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
500 |
300 |
45 |
55 |
65 |
0.15 m^2 |
1.6 m |
Code |
CM002405 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
96.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
850 nm |
Risk Class |
1 (low risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x300 - White
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
300 |
45 |
55 |
65 |
0.21 m^2 |
2 m |
Code |
CM002317 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
135.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
|
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x300 - Red
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
300 |
45 |
55 |
65 |
0.21 m^2 |
2 m |
Code |
CM002402 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
135.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
630 nm |
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x300 - Infrared
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
300 |
45 |
55 |
65 |
0.21 m^2 |
2 m |
Code |
CM002406 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
135.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
850 nm |
Risk Class |
1 (low risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x500 - White
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
500 |
45 |
55 |
65 |
0.35 m^2 |
2.4 m |
Code |
CM002318 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
252.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
|
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x500 - Red
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
500 |
45 |
55 |
65 |
0.35 m^2 |
2.4 m |
Code |
CM002403 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
252.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
630 nm |
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 700x500 - Infrared
This Toplight size is suitable for models: FlexiBowl® 650, FlexiBowl® 800
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
700 |
500 |
45 |
55 |
65 |
0.35 m^2 |
2.4 m |
Code |
CM002407 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
252.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
850 nm |
Risk Class |
1 (low risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 900x600 - White
This Toplight size is suitable for FlexiBowl® 1200 models
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
900 |
600 |
45 |
55 |
65 |
0.54 m^2 |
3 m |
Code |
CM002319 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
345.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
|
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 900x600 - Red
This Toplight size is suitable for FlexiBowl® 1200 models
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
900 |
600 |
45 |
55 |
65 |
0.54 m^2 |
3 m |
Code |
CM002404 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
345.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
630 nm |
Risk Class |
0 (no risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
TopLight 900x600 - Infrared
This Toplight size is suitable for FlexiBowl® 1200 models
Length |
Width |
Height |
Height with fixing plate |
Central hole diameter |
Max. useful surface [AxB] |
Max. useful perimeter |
|---|---|---|---|---|---|---|
A |
B |
C |
C + 10mm |
D |
- |
- |
900 |
600 |
45 |
55 |
65 |
0.54 m^2 |
3 m |
Code |
CM002408 |
Electronic |
|
Power supply |
24 VDC ±10% |
Control mode |
Continuous |
Maximum ascent time |
15 µs |
Maximum descent time |
10 µs |
Control |
|
Connector pin configuration |
1: 24VDC / 3: GND / 4: PNP |
Consumption |
345.6W @24 Vdc |
Minimum operating voltage |
20V at light input |
Nominal operating voltage |
24V at light input (±10%) |
Maximum operating voltage |
30V at light input |
Wavelength |
850 nm |
Risk Class |
1 (low risk) |
Mechanical |
|
Thickness |
45mm + 10mm with fixing plate |
Inside diameter |
65mm |
Weight |
23.8 Kg/m² ±15% |
Materials |
Aluminium and filled ABS |
Diffuser |
PMMA white |
Fixing |
4 M4 nuts (supplied) to be inserted into the groove or 4 M4x20 screws (not supplied) applied to the corners |
Environment |
|
Operating temperature |
-10°C to +40°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Storage temperature |
-20°C to +60°C / 80% humidity non-condensing No thermal shock (maximum variation: 10°C in 24h) |
Degree of protection IP |
IP 50 |
Markings |
RoHS-CE-DEEE, UL |
Toplight Power Cable#
Code |
Description |
Connector |
|---|---|---|
CE001337 |
Toplight Power Cable 2M |
M12 4 Pin Female |
CE001338 |
Toplight Power Cable 5M |
M12 4 Pin Female |
CE001339 |
Toplight Power Cable 10M |
M12 4 Pin Female |

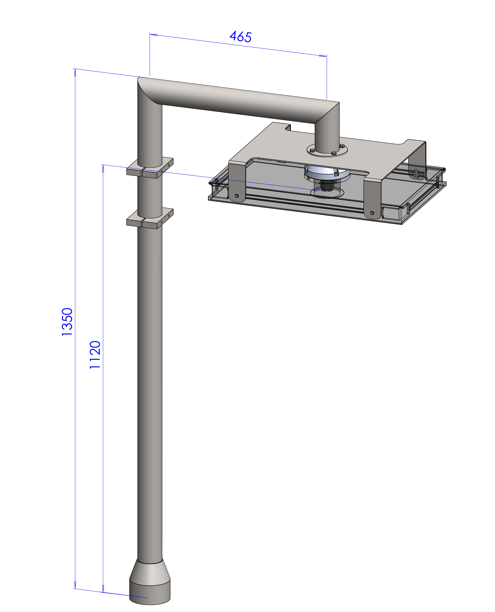

Toplight Mounting Bracket#
To mount the toplight on the side, a dedicated mounting bracket can be purchased separately.
Backlight#
The Backlight is a backlighting system positioned inside the FlexiBowl® table top that illuminates the part from below, creating a sharp contrast between the part profile and the luminous background. It is particularly effective for recognising shapes, contours and holes, regardless of the colour or surface finish of the part.
Backlight for FB200
Items |
CE000351 |
CE000353 |
CE000331 |
|---|---|---|---|
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
0.17A |
0.12A |
0.17A |
Illumination area |
155x75 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight for FB350
Items |
CE000342 |
CE000275 |
CE000341 |
|---|---|---|---|
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
0.18A |
0.13A |
0.18A |
Illumination area |
220x100 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight for FB500
Items |
CE000344 |
CE000272 |
CE000343 |
|---|---|---|---|
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
0.46A |
0.31A |
0.46A |
Illumination area |
330x170 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight for FB650
Items |
CE000306 |
CE000273 |
CE000305 |
|---|---|---|---|
Alternative items |
GM000591 |
GM000592 |
GM000590 |
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
0.86A |
0.56A |
0.94A |
Illumination area |
400x240 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight for FB800
Items |
CE000345 |
CE000274 |
CE000346 |
|---|---|---|---|
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
1.15A |
0.76A |
1.2A |
Illumination area |
400x315 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight for FB1200
Items |
GE000051 |
GE000052 |
GE000050 |
|---|---|---|---|
LED Colour |
red |
infrared |
white |
Wavelength |
630 nm |
850 nm |
N/A |
Voltage |
24VDC |
24VDC |
24VDC |
Current |
4A |
2.6A |
4.2A |
Illumination area |
917x525 mm^2 |
||
Structure material |
Aluminium alloy |
||
Operating temperature |
-40 / +85 °C |
||
Cable length |
0.2 m |
||
Cooling method |
Natural air |
||
Opaline material |
White opaline methacrylate |
Backlight or Toplight?#
Warning
Impact on part identification
The choice between backlight and toplight significantly affects identification:
Backlight: Ideal for contours/shapes, pieces appear as dark silhouettes on a light background
Toplight: Required for identifying surface details, textures, internal features
Calibration, when using an ARS calibration grid, must be performed using the backlight illuminator and the toplight must be switched off if present.
When to use one or the other#
Illuminator |
When to use it |
Example |
|---|---|---|
Toplight |
Used when the component cannot be identified by the shape alone, but by the details on the object. It is primarily suitable for smooth, non-reflective surfaces, or surfaces with some kind of distinguishable markings. |
|
Backlight |
The backlight is mainly used when the object can be identified by its silhouette/shape or with transparent parts. |
|
Typical use cases#
Screws, bolts, washers → Backlight
Pieces with print on top face, matt parts on dark surfaces → Toplight
Transparent or translucent parts → Backlight
Glossy pieces with reflections → Backlight
Lighting colour#
When to use each colour#
Colour / Wavelength |
Recommended use |
Examples |
|---|---|---|
White |
Used with transparent components. The cell needs to be shielded against any external light source and sunlight. |
|
Red (630 nm) |
Used for special metal components. Wavelength: 630 nm. The cell needs to be shielded against any external light source and sunlight. |
|
Infrared (850 nm) |
Preferred for most types of applications. It is not visible to the human eye. Wavelength: 850 nm. We recommend shielding the cell to avoid interference with sunlight. |
|
For more information on Ambient Light Shielding, visit the Ambient Light Shielding section.
IR filter#
The IR filter is an optical accessory to be applied to the camera lens to block visible light while allowing only infrared radiation to pass through. This is only necessary if an IR illuminator (850 nm) is used: without a filter, the camera would receive both visible and infrared light, compromising contrast and identification quality.
Switch#
Electrical Specifications#
Parameter |
Value |
|---|---|
Input voltage |
12/24/48 VDC |
Operating voltage |
9.6 to 60 VDC |
Input current |
0.33 A (max.) |
Power connection |
1 removable 2-contact terminal block |
Overcurrent protection |
Supported |
Reverse polarity protection |
Supported |
10/100/1000BaseT(X) ports (RJ45) |
8 |
Duplex mode |
Full/Half duplex |
Connection |
Auto MDI/MDI-X |
Speed negotiation |
Automatic |
Supported Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x |
Type of processing |
Store and Forward |
MAC table size |
4 K |
Packet buffer size |
1.5 Mbit |
DIP switch configuration |
QoS, Broadcast Storm Protection (BSP) |
Certifications |
UL 61010-2-201, EN 62368-1, EN 55032/35, EN 61000-6-2/-6-4, CISPR 32, FCC Part 15B Class A, CE, FCC |
Physical Specifications#
Parameter |
Value |
|---|---|
Dimensions |
36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in) |
Weight |
180 g (0.4 lb) |
Housing |
Metal |
Protection rating |
IP40 |
Installation |
DIN rail, wall bracket (optional kit) |
Operating temperature (standard) |
-10 to 60°C (14 to 140°F) |
Operating temperature (model -T) |
-40 to 75°C (-40 to 167°F) |
Relative humidity |
5 to 95% (non-condensing) |
Storage temperature |
-40 to 85°C (-40 to 185°F) |
MTBF |
3,404,784 hours |
Warranty |
5 years |
Touch Screen Display#
Entry |
Specifications |
|---|---|
Touch Screen |
Capacitive |
Video Input |
1x VGA |
Power supply |
12~32 Vdc (Power consumption 30W) |
Assembly |
Panel mounting |
External Dimensions |
(W) 560 mm x (D) 350 mm x (H) 60 mm |
Weight |
7 kg |
Safeguard |
IP66 (front) |
Operating Temperature |
0 ~ 50°C |
Storage Temperature |
-20 ~ +65°C |
Humidity |
< 90% non-condensing |
Certifications |
CE |
