Unboxing and Contents of the Box#

Once you receive your FlexiVision One kit, check that all the items listed below are included and in good condition.

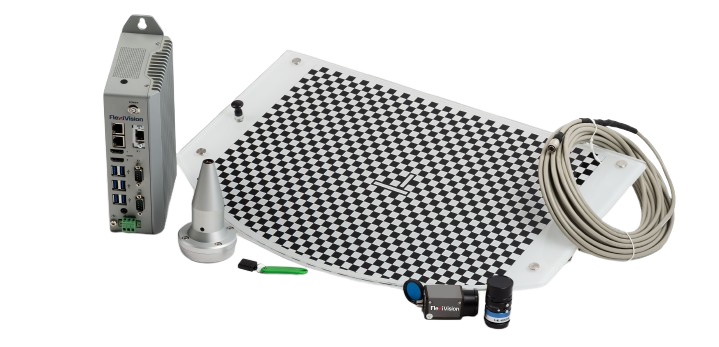

FlexiVision One kit#

Qty	Component
1	Camera
1	Lens (specific focal length for the chosen working distance)
1	Calibration Grid (specific for the model ordered)
1	VisionController
1	License Key
1	Laser Calibration Tool
1	Power Cable (10 m)
3	Ethernet Cables

Note

The calibration grid and optics may differ from the pictures depending on the kit chosen.

Kit overview#

Component	Technical Specifications	Image

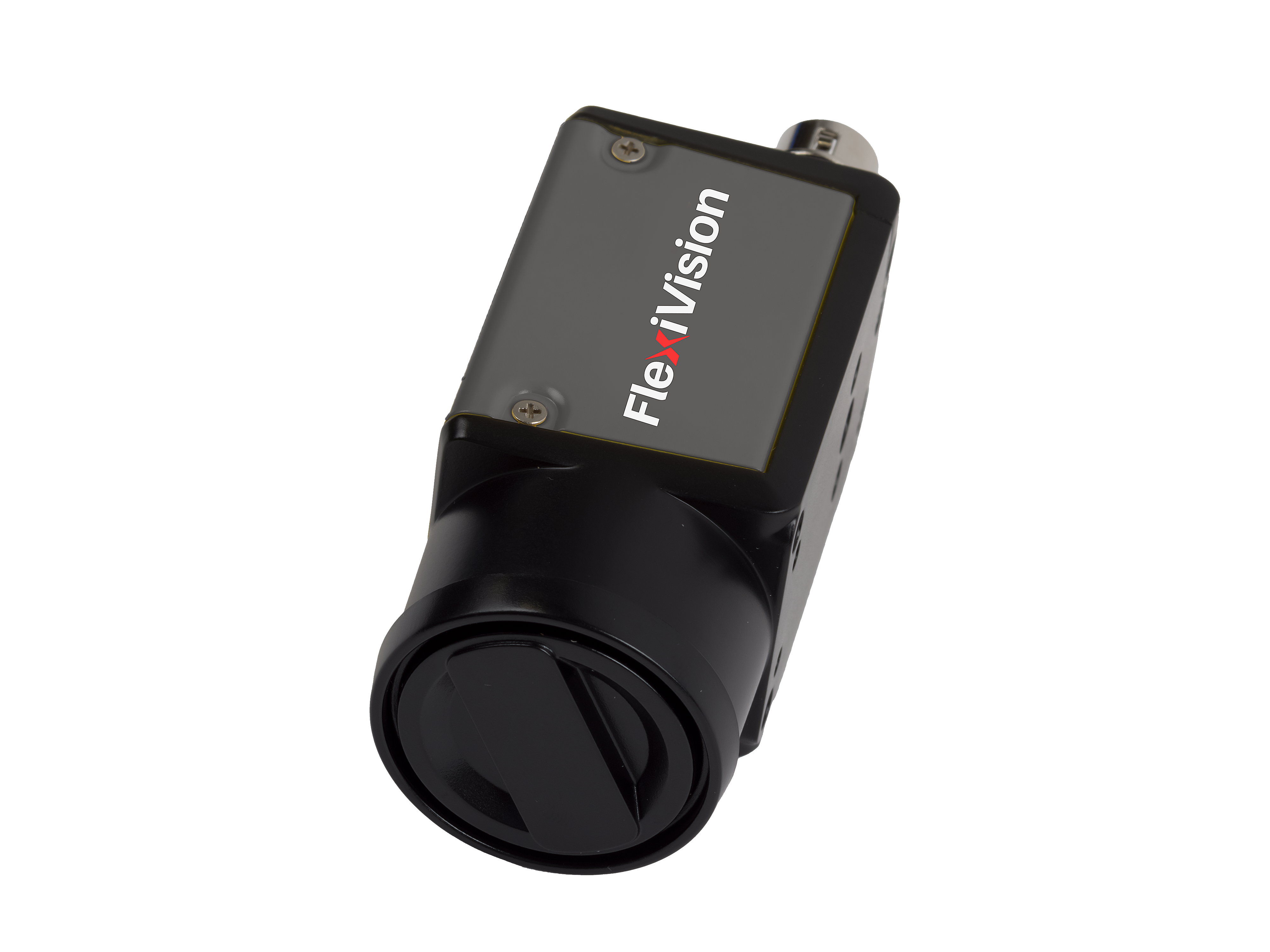

Camera	Go to Camera Specifications

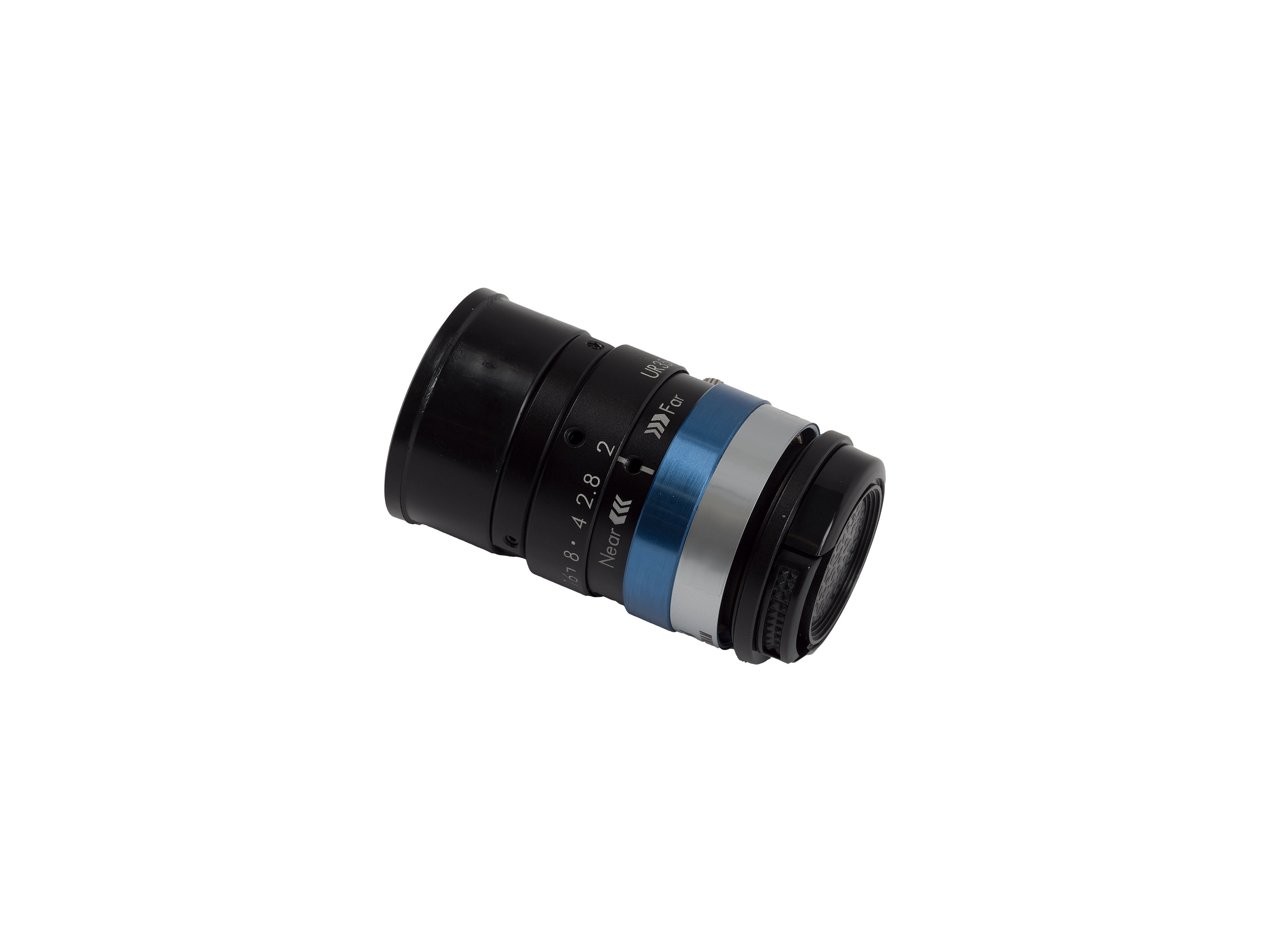

Lens	Go to Lens Specifications

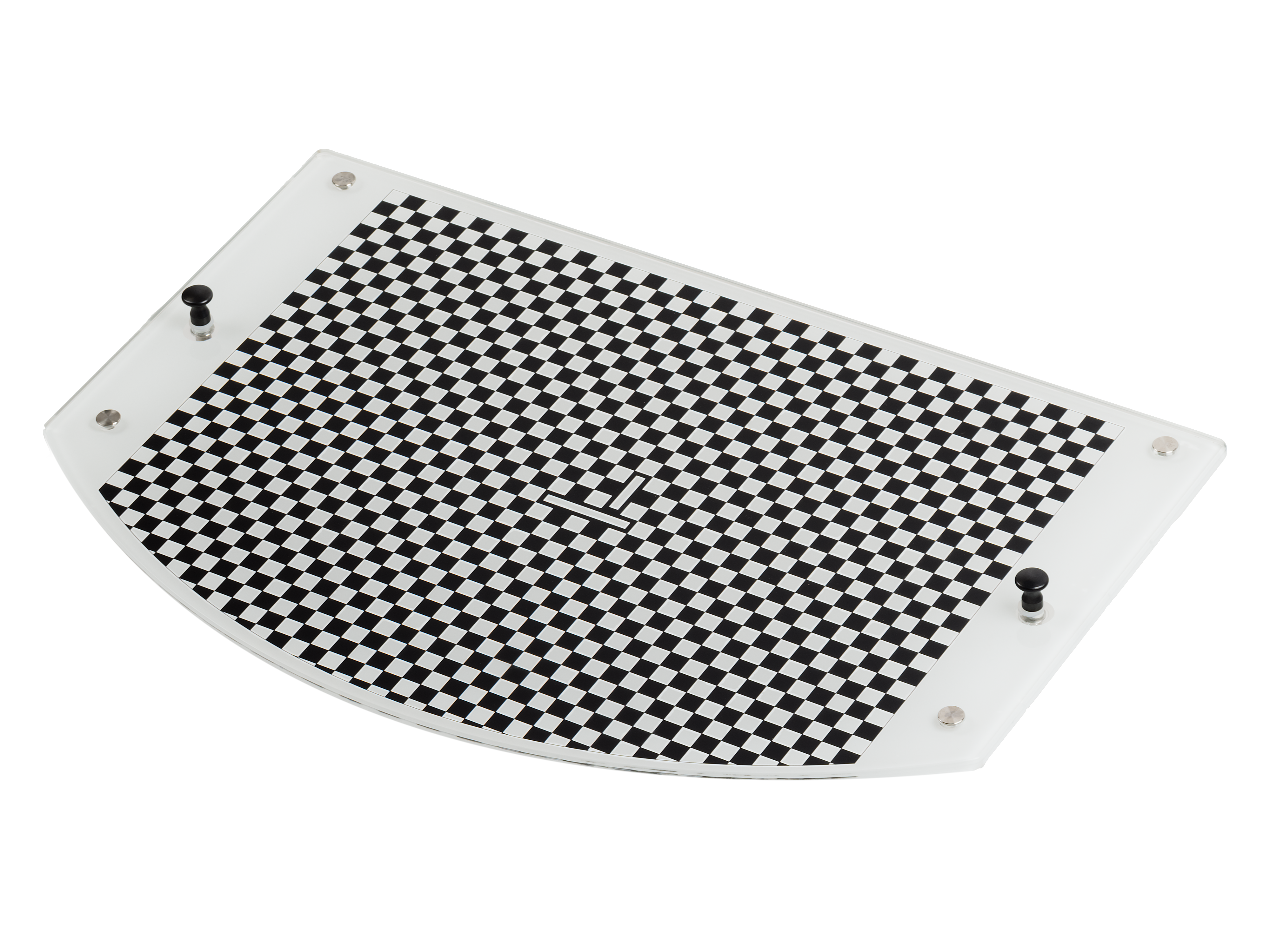

Calibration Grid	Go to Calibration Grid Specifications

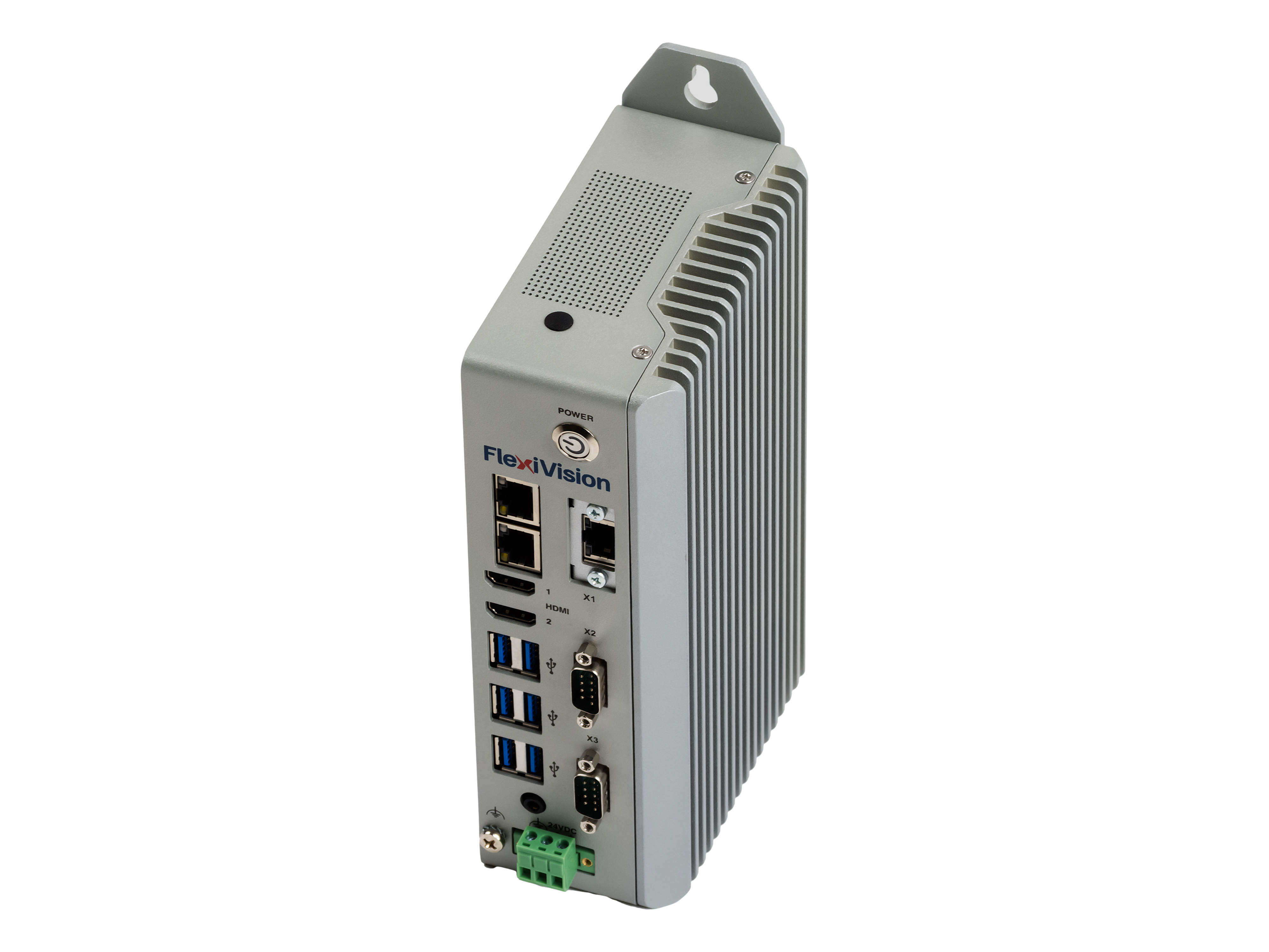

VisionController	Go to VisionController Specifications

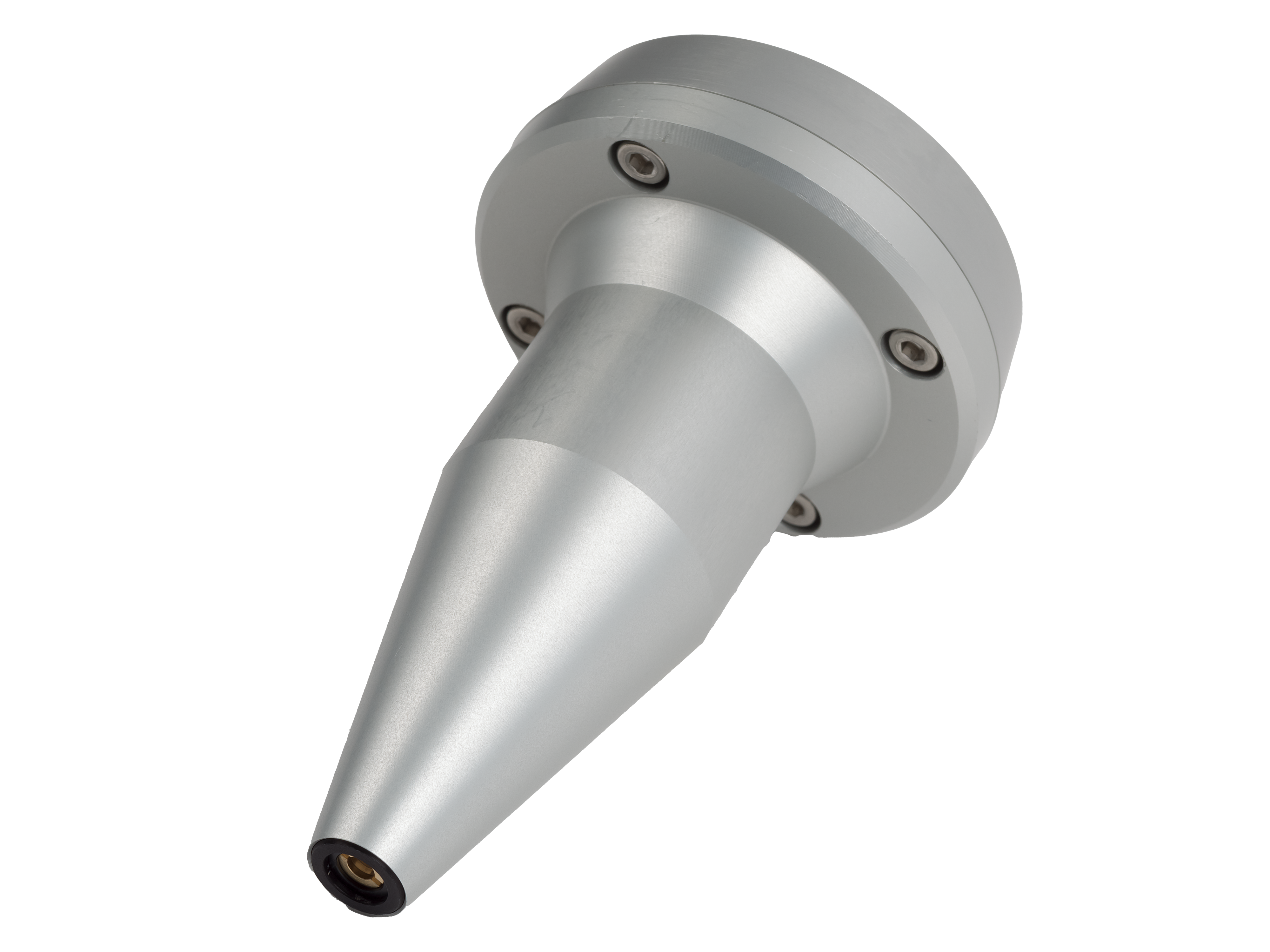

Laser Calibration Tool	Go to Laser Tool Specifications

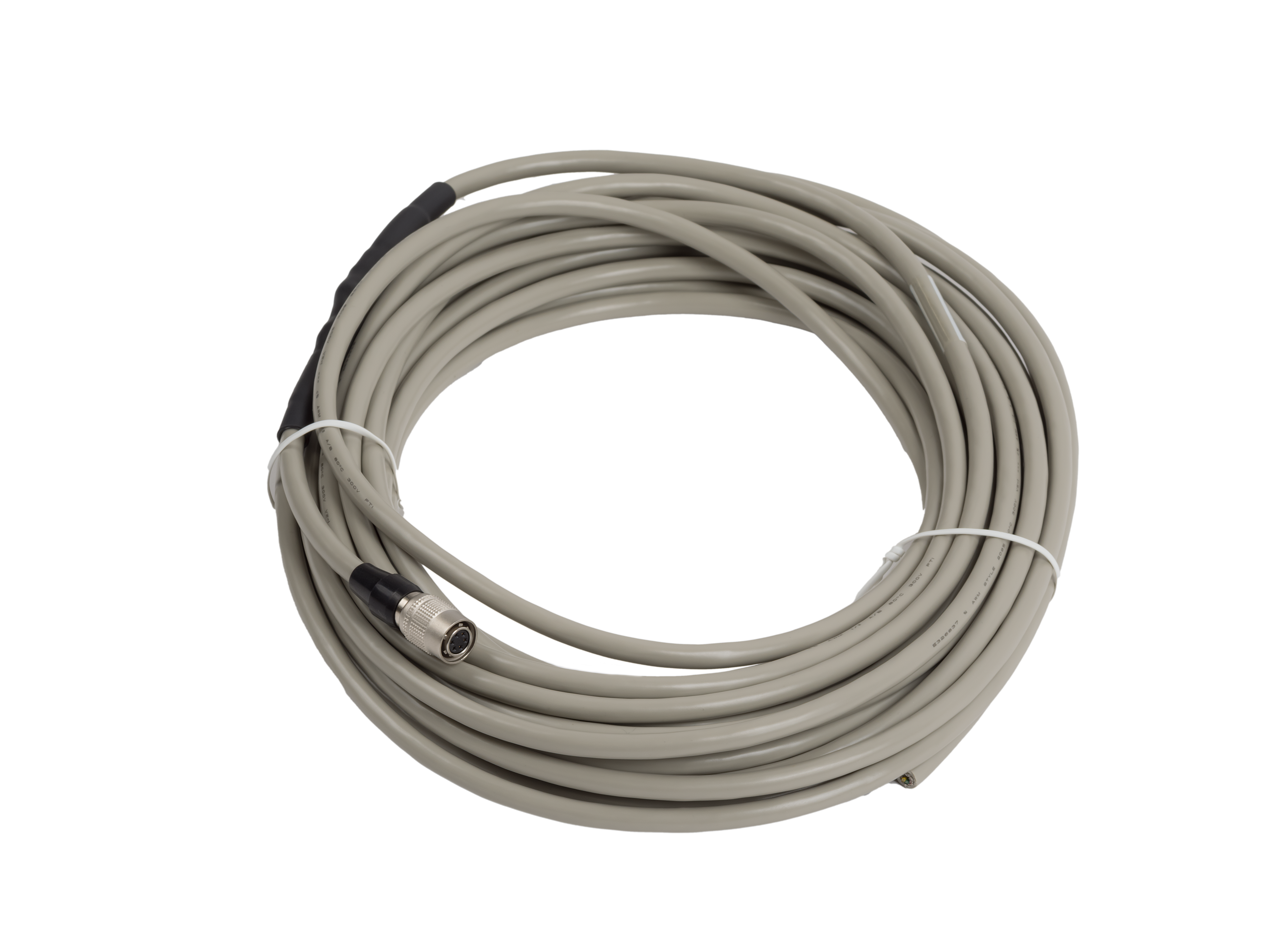

Power Cable (10 m)	Go to Cable Specifications

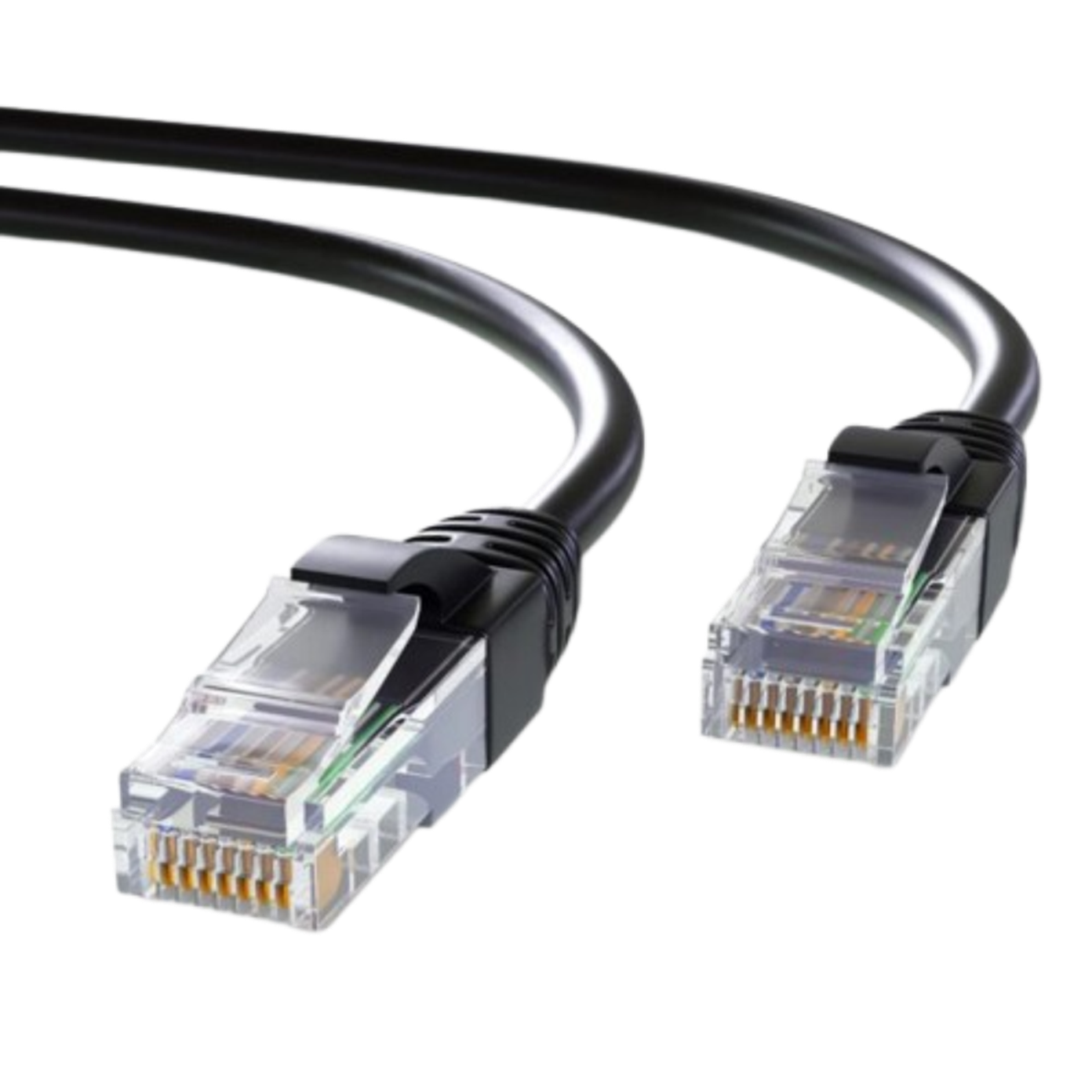

3 Ethernet Cables (3 m)	Cat 6 with S/STP Shielding

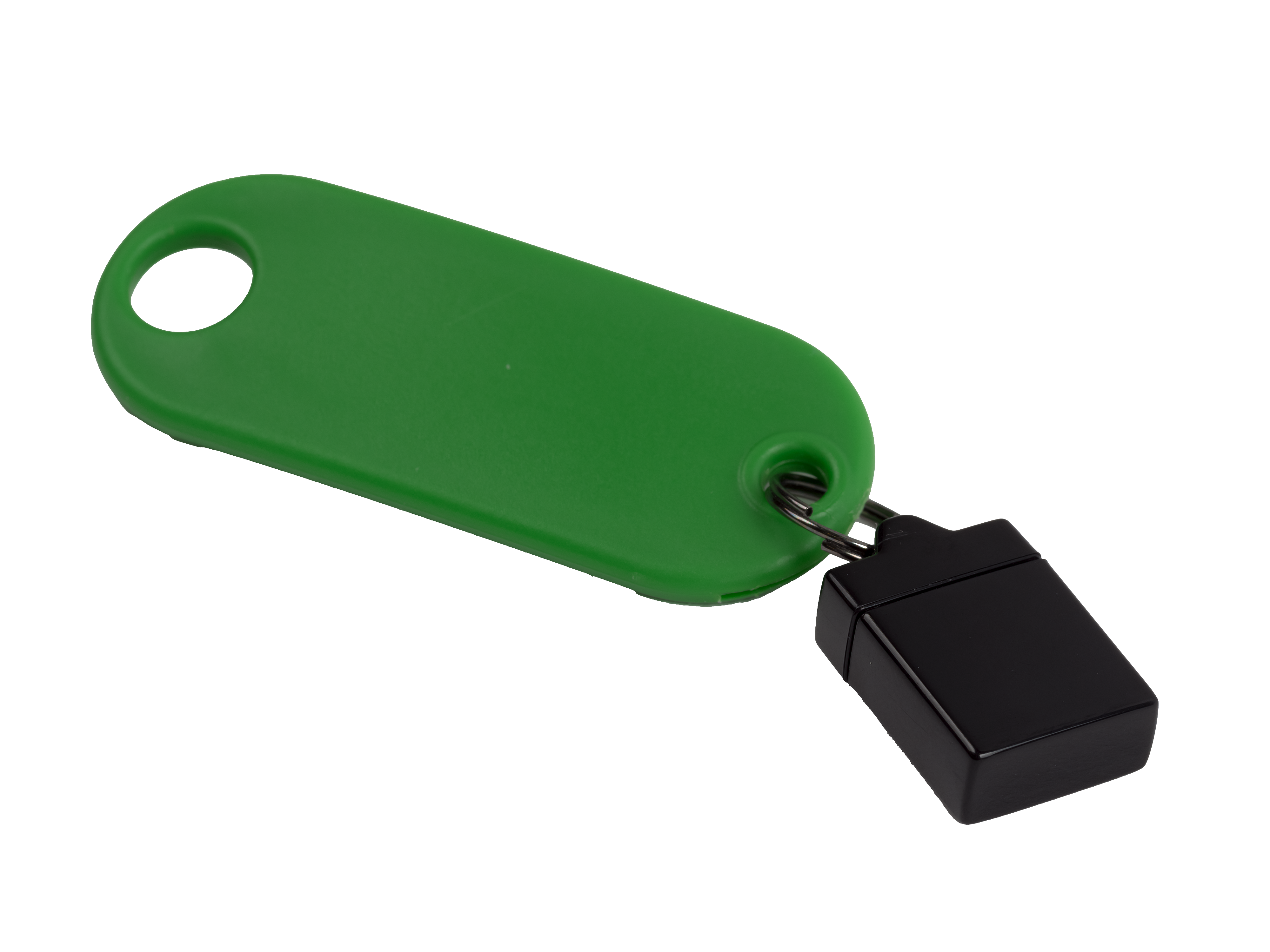

License Key

Optional Accessories#

Depending on your application, the following optional accessories may be included in your order:

Component	Available variants
Toplight	Link to the Section
Toplight Power Cable	Link to the Section
Backlight	Link to the Section
IR Filter	Link to the Section
Ethernet Cable	5 m / 10 m
Ethernet Switch	Link to section
Display	Link to the Section

Important

If the items received do not match the order or are damaged, do not sign the delivery document. Contact FlexiVision One support or your local distributor immediately.
